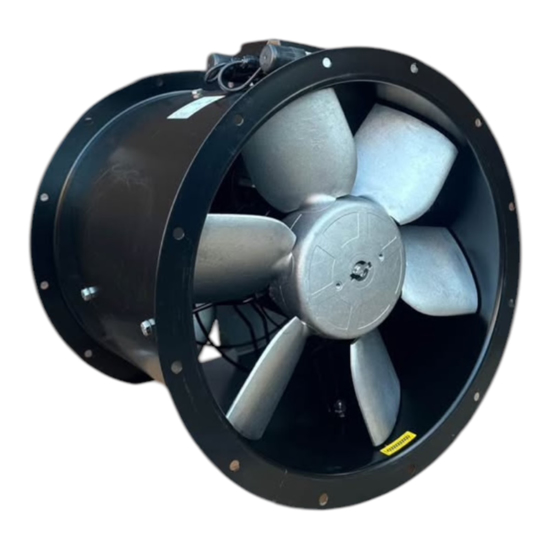

TCBBX2/4-500 Cased Contra-Rotating Axial Twin Fan – 1ph 230V 50Hz (S&P)

Name: TCBBX2/4-500 Cased Contra-Rotating Axial Twin Fan – 1ph 230V 50Hz (S&P)
SKU: Alph62
Price: 1059.50 GBP
Availability: InStock

The TCBBx2/4 500 is a single phase, contra rotating cased axial fan from Soler & Palau, designed for high pressure ventilation applications such as commercial kitchens, ducted systems and industrial exhausts. Its dual impeller design enhances pressure performance while maintaining compact dimensions.

SKU: Alph62

£1,059.50 ex VAT

Qty:

Model	Max Airflow (m³/h)	Static Pressure (Pa)	Input Power (kW)	Speed (RPM)	Efficiency (%)	Notes
TCBBx2/4-450	7,430	200	1.316	1349	41.9	Single-phase, 230V
TCBTx2/4-450	7,250	200	1.309	1358	46.9	Three-phase, 230/400V
TCBBx2/4-500	9,850	200	1.957	1394	45.1	Single-phase, 230V
TCBTx2/4-500	9,800	200	1.700	1390	47.5	Three-phase, 230/400V
TCBBx2/4-560	13,530	200	2.972	1370	41.9	Single-phase, 230V
TCBTx2/4-560	15,170	200	3.173	1390	45.8	Three-phase, 230/400V
TCBBx2/4-630	18,580	200	3.871	1403	42.4	Single-phase, 230V
TCBTx2/4-630	17,810	200	4.014	1415	47.2	Three-phase, 230/400V
