HCBB/4-400/H-A Plate Axial Fan – 1ph 230V 50Hz (S&P)

Name: HCBB/4-400/H-A Plate Axial Fan – 1ph 230V 50Hz (S&P)
SKU: Alph64
Price: 316.00 GBP
Availability: InStock

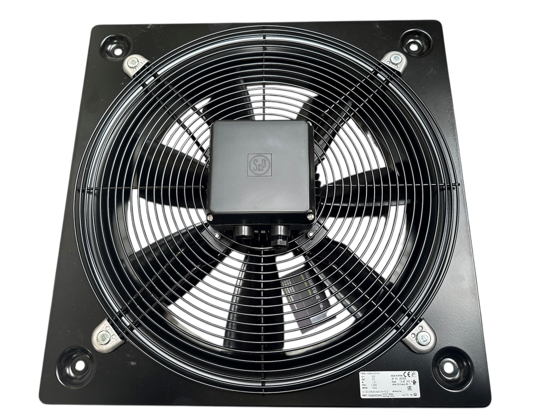

The HCBB/4 400/H A is a plate mounted axial flow fan from Soler & Palau, designed for industrial and HVAC applications requiring high airflow and durability.

Used regularly to bring supply air into kitchens and factories.

These can also extract air but will need a mesh to cover the blades, as this specification is not reversible.

Below are its key technical specifications:

Model: HCBB/4 400/H A
Motor Type: Single phase, 4 pole asynchronous squirrel cage motor
Voltage: 230V, 50Hz
Power Consumption: 315 W
Current Draw: 1.5 A
Speed: 1360 RPM
Airflow Capacity: Up to 4,830 m³/h
Sound Level: 62 dB(A)
Operating Temperature Range: -40°C to +70°C
Protection Rating: IP65
Insulation Class: Class F
Weight: Approximately 9 kg

SKU: Alph64

£316.00 ex VAT

Buy 5+ Save 5% | Buy 10+ Save 10%

5+ Units	10+ Units
—	—

Qty:

Our HCBB/4-400/H-A Plate Axial Fan is designed for powerful air movement within commercial and industrial ventilation systems. This 1ph 230V 50Hz S&P plate axial fan is suitable for applications requiring dependable extract or supply airflow through walls, panels, or ducted systems.

Plate axial fans are commonly used in warehouses, workshops, plant rooms, factories, agricultural buildings, and commercial ventilation installations where high airflow performance and robust construction are required.

Compatible / other products include HCBB/4-355/H-A Plate Axial Fan, HCBB/4-450/H-A Plate Axial Fan, Fan Clamp Fast Clamp, and Spiral Ducting Tube.

Suitable for commercial extraction, industrial ventilation, air movement systems, plant rooms, and general HVAC installations, this plate axial fan provides strong and dependable airflow performance.
