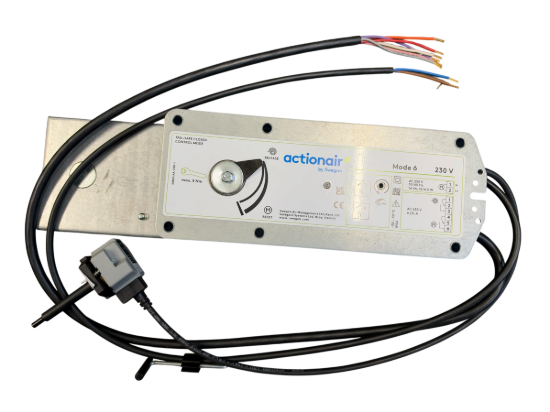

Action Air Mode 6

Action Air Mode 6 is a 230V AC electric spring-return actuator used to control smoke and fire dampers (such as Action Air Smoke Shield and Fireshield systems)
Motor open & spring-return actuator, combined with thermoelectric tripping device (BAT 72oC), for automatic fire dampers in ventilation and air-conditioning systems.
• Torque motor 20 Nm / 20 Nm
• Nominal voltage AC/DC 24 V / AC 230 V
• Control Motor Open/ Fail-Safe Close
• Mechanical interface form fit 14mm Hex continuous hollow shaft
Application:
Motor open & spring return actuators complete with BAT72 are intended for the operation of Swegon Fire Dampers.
