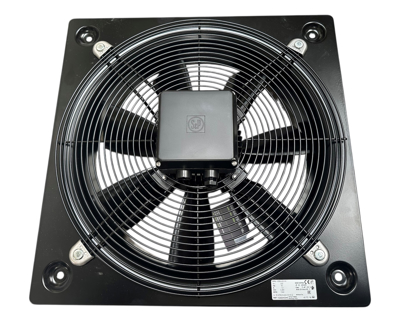

The HCBB/4-400/H-A is a plate-mounted axial flow fan from Soler & Palau, designed for industrial and HVAC applications requiring high airflow and durability.

Used regulary too bring supply air into kitchen's & factorys.

Below are its key technical specifications:

• Model: HCBB/4-400/H-A

• Motor Type: Single-phase, 4-pole asynchronous squirrel-cage motor

• Voltage: 230V, 50Hz

• Power Consumption: 315 W

• Current Draw: 1.5 A

• Speed: 1360 RPM

• Airflow Capacity: Up to 4,830 m³/h

• Sound Level: 62 dB(A)

• Operating Temperature Range: -40°C to +70°C

• Protection Rating: IP65

• Insulation Class: Class F

• Weight: Approximately 9 kg

• Diagonal impeller with downstream three-dimensional guide vanes
• Galvanized metal housing
• Speed controllable
• Integrated thermostatic switch
• Includes mounting bracket

Data Sheets

250 fan sizes

315 fan sizes

Circular volume control dampers with multiple blades are used where there is no need for a high level of shut off. Manufactured from galvanised steel. External manual handle with several control settings. Male connections to fit inside spiral ducting. Square and rectangular multi-blade dampers also available - please enquire.
